*CENTRU DE COMANDA PENTRU INCALZIRE IN PARDOSEALA ZIGBEE ECB62-ZB

Informații privind modificările produselor Imaginile au caracter orientativ și pot exista diferențe minore față de produsele fizice.

    *CENTRU DE COMANDA PENTRU INCALZIRE IN PARDOSEALA ZIGBEE ECB62-ZB
Engo Product stock

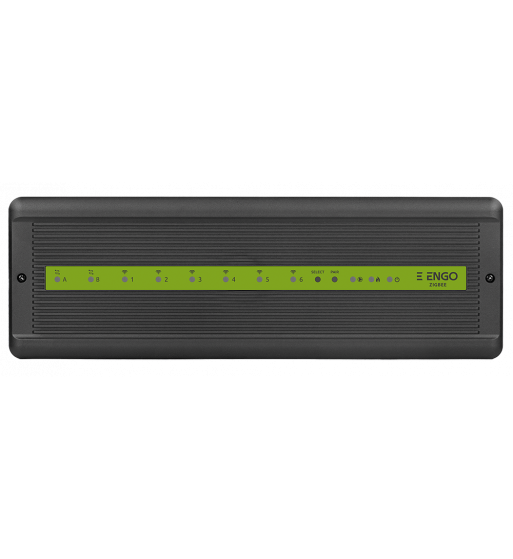

*ZIGBEE ECB62-ZB UNDERFLOOR HEATING CONTROL CENTER

ENGECB62ZB
Your price
469.09 lei  / VAT exc.
567,60  lei  / VAT incl.

Control Box for Underfloor Heating System with 6 wireless ZigBee zones + 2 wired zones, 230V

Quantity

ENGECB62ZB

Control Box for Underfloor Heating System with 6 wireless ZigBee zones + 2 wired zones, 230V

  • the box allows control of up to 8 heating zones, including 6 wireless and
  • 2 wired ones
  • possibility to connect up to 50 actuators
  • the kit includes an antenna with a 1m cable mounted on a magnetic
    mount, which increases the communication range
  • ability to set the pump and heat source shutdown delay from 0 to 15
    minutes
  • ENGO Binding – function allows wireless linking of the box with
    dedicated controllers of EONE or E25 series
  • requires an internet gateway
  • works with NC type thermoelectric actuators
  • uses ZigBee 3.0 technology for wireless control of temperature
    controllers
  • mounts on DIN rail or flat surface

TECHNICAL DATA

Power supply

230V AC 50Hz
Max current

10(1) A
Communication

wired and wireless ZigBee 3.0
Input

2 wired zones
6 ZigBee wireless zones
Outputs

Pump (230V)
Boiler (NO/COM)
Thermoelectric actuators (230V)
Dimensions [mm]

330 x 110 x 36
ENGECB62ZB
New

Data sheet
