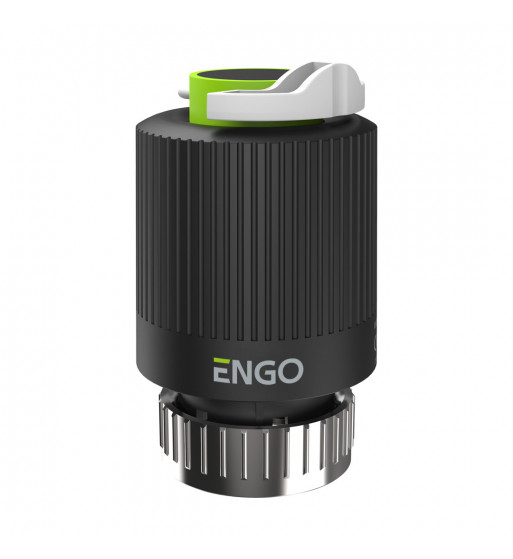

Thermal Actuator 230V, M28x1,5, normally closed
Thermal Actuator 230V, M28x1,5, normally closed
• Thread size M28
• Low power consumption (only 2 W) – energy efficient
• Highly durable – lasting for years
• Small footprint – hassle-free installation
TECHNICAL DATA
| Version |
NC = normally closed |
|---|---|
| Thread size |
M28 x 1.5mm |
| Power supply |
230V AC 50Hz |
| Power consumption |
2W |
| Inrush current |
300mA / 200ms |
| Press force |
100N +/- 20% |
| Max. stroke |
4.5mm |
| torage temp. |
-25°C to +60°C |
| Ambient temp. |
Max. 60°C |
| Protection class |
IP 54/II |
| Cable length |
90cm |
| Dimensions [mm]. |
Φ 41 x 65 |
Data sheet
The price is per piece.

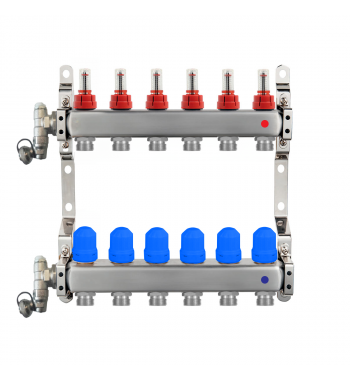

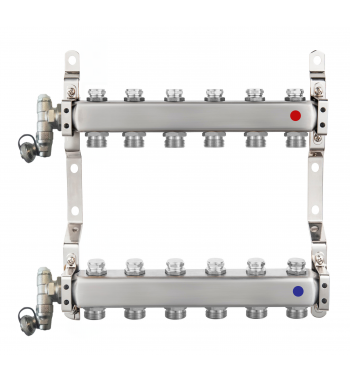

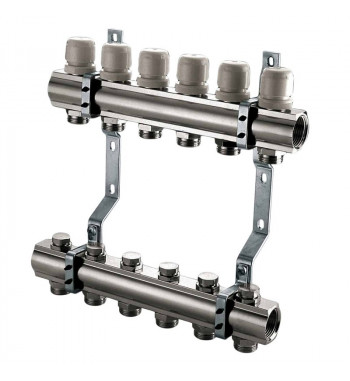

Set of stainless steel bar type distributors with flowmeters and thermostatic valves. Flow and return distributors, AISI 304 stainless steel execution with staggered outlets, end pieces, drain valves, air vents and a set of support brackets for the distributors for mounting on the wall or in metal boxes.
