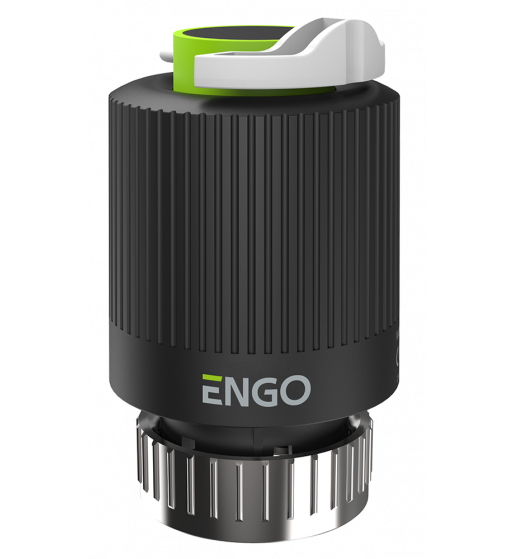

Thermal Actuator 230V, M30x1,5, normally closed
Thermal Actuator 230V, M30x1,5, normally closed
• Thread size M30
• Low power consumption (only 2 W) – energy efficient
• Highly durable – lasting for years
• Small footprint – hassle-free installation
TECHNICAL DATA
| Version |
NC = Normally Close |
|---|---|
| Thread size |
M30 x 1.5mm |
| Power supply |
230V AC 50Hz |
| Power consumption |
2W |
| Inrush current |
300mA / 200ms |
| Press force |
100N +/- 20% |
| Max. Stroke |
4.5mm |
| Storage temperature |
-25°C do +60°C |
| Ambient Temp. |
Max. 60°C |
| Protection class |
IP 54/II |
| Cable length |
90cm |
| Dimension [mm] |
Φ 41 x 65 |
Data sheet
